TV Wall Mounting Sydney – Safe, Clean & Same-Day Install

Your TV should look like it belongs on the wall, not like an afterthought held up by a $20 bracket and a prayer.

Sydney Cabling provides professional TV wall mounting across all Sydney suburbs. Whether you need a clean fixed mount in the bedroom, a full-motion bracket in the living room, or a hidden-cable installation above the fireplace, our licensed technicians handle it properly, from structural assessment to final cable tuck. No mess. No callbacks. No crooked TVs.

📞 Call us now for a free quote or keep reading to understand exactly what a professional installation includes and why it matters.

What’s Included in Sydney Cabling’s TV Wall Mounting Service

Our service is not “bracket on wall, TV hung, see ya.” Here’s what every installation includes:

1. Wall Type Assessment

Before a single drill goes in, the technician identifies your wall construction, plasterboard over timber studs, double brick, concrete slab, rendered masonry, or a combination. This determines which fixings, anchors and tools are needed for a safe, code-compliant installation. Read the full breakdown of what’s included in a professional TV wall mounting service.

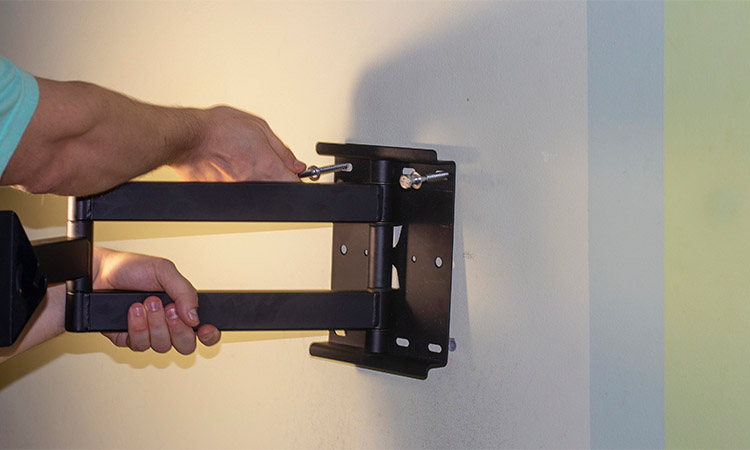

2. Mount Type Selection & Installation

We install all bracket types:

• Fixed / flat mounts: TV sits flush to the wall, perfect for dedicated viewing positions in bedrooms and living rooms
• Tilt mounts: allow downward tilt to reduce glare and improve comfort when the TV is mounted higher than eye level
• Full-motion / articulating mounts: extend, swivel and tilt, ideal for open-plan rooms, corner positions and commercial spaces
• Ultra-slim low-profile mounts: TV sits within 25mm of the wall for a true built-in appearance

All brackets are installed to manufacturer specifications with appropriate fixings for your specific wall type.

3. TV Mounting & Alignment

Once the bracket is confirmed secure, the TV is carefully lifted, attached and checked for level. We test the mount through its full range of motion (where applicable) and confirm cable connections are accessible.

4. Cable Management

Messy cables undo the entire point of wall mounting. We offer:

• In-wall cable concealment: cables are routed through the wall cavity so nothing is visible from the front
• Surface cable trunking: paintable conduit runs along the skirting or architrave for walls without a cavity (solid brick or concrete)
• Behind-TV cable organisation: cables are bundled and secured behind the TV where concealment inside the wall isn’t possible

For apartments and homes where running cables through walls requires strata approval or electrical work, we advise on the correct path forward. Power point relocation requires a licensed electrician, we can coordinate this as part of the job.

5. Device Integration & Testing

We connect your streaming devices, soundbars, gaming consoles, and AV receivers so everything works before we leave. If you’re also experiencing signal issues, our team can address these at the same visit, from a loose aerial connection to a full TV antenna installation or upgrade.

Wall Types We Work With

One of the most common questions we receive is: “Can you mount on [wall type]?” The answer is almost always yes, but how it’s done depends entirely on what the wall is made of.

Plasterboard (Gyprock) Walls

The most common wall type in Sydney homes built after the 1970s. Mounting on plasterboard correctly means locating the timber studs behind the plaster and anchoring into those, not just into the plaster sheet itself. Studs are typically spaced 450mm–600mm apart. We use professional stud finders and confirm with a test hole before committing the bracket position. For walls where studs don’t line up with the ideal TV position, we install a timber backing plate or use heavy-duty toggle bolts rated to the TV’s weight.

Brick & Double-Brick Walls

Common in Sydney homes built before the 1970s and in many apartment buildings. Brick is an excellent mounting surface, stronger than plasterboard when the right fixings are used. We drill with masonry bits and install dynabolts (sleeve anchors) that expand inside the brick for maximum hold. There is no plaster dust spray and no guessing, just solid, confident anchoring.

Concrete Walls & Ceilings

Found in many Sydney apartment buildings and multi-storey homes. Concrete requires diamond-core masonry bits and chemical anchors for heavy loads. Our technicians carry the right equipment for this, it’s not a job for a standard cordless drill.

Feature Walls (Rendered, Stone, Tile)

Feature walls need particular care because damage is costly and obvious. We assess the substrate behind the surface finish first, choose a fixing method that won’t fracture tiles or rendered surfaces, and plan the cable route to avoid crossing decorative sections.

TV Wall Mounting Costs in Sydney (2026 Pricing Guide)

Transparent pricing is part of how we operate. Based on current Sydney market rates, here’s what you can expect to pay:

Note: These are Sydney market guide prices as at 2026. Sydney Cabling provides fixed, itemised quotes before any work begins, so there are no surprises on the day.

For a deeper dive into what drives these costs, read our detailed article: The real cost of TV wall mounting in Sydney and what actually affects the price.

Professional vs DIY TV Wall Mounting

The internet is full of tutorials that make TV wall mounting look simple. And for a small, lightweight TV on a standard stud wall, it is manageable. But the calculus changes fast when:

• Your TV is 65″ or larger
• Your wall is brick, concrete or a tiled feature wall
• You want cables hidden inside the wall
• You’re mounting above a fireplace (heat and stud placement create real complications)
• Your home is a rental or apartment with strata obligations

Our detailed guide on DIY vs professional TV wall mounting lays out every scenario honestly. The short version: for anything beyond a basic 55″ on a flat plasterboard wall, the risk-adjusted cost of hiring a professional is almost always lower than the cost of fixing a DIY mistake.

A TV falling off the wall doesn’t just damage the TV. It can damage the wall, injure a family member, and void your home insurance if the installation wasn’t compliant. Professional installation protects you on every front.

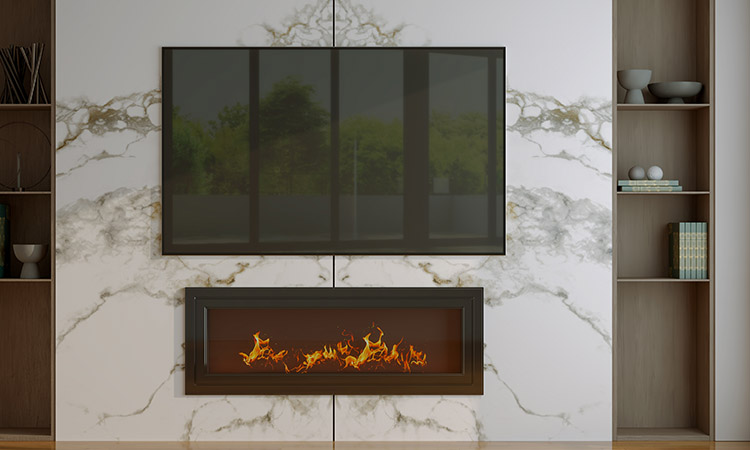

Mounting Above a Fireplace: What You Need to Know

Mounting above a fireplace is one of the most requested, and most mishandled, TV installations in Sydney. It looks stunning when done right. It’s a disaster when done wrong.

The key challenges are:

Heat exposure. Most LCD and OLED TVs are rated for ambient temperatures up to 35–40°C. Wood-burning and gas fireplaces can push temperatures well above this if the fireplace is directly below the TV and the chimney isn’t properly drawing heat away. We assess heat flow before recommending this position.

Viewing angle. The average fireplace mantle sits 1.2–1.5m off the floor. A 65″ TV mounted there puts the screen centre at around 1.7–1.8m, significantly above the ergonomically ideal 1.1–1.2m for a seated viewer. A full-motion downward-tilt mount reduces this issue considerably. See our guide on optimal TV viewing height and distance for the exact numbers.

Stud position. In older Sydney homes, the masonry above the fireplace opening often has no stud backing. We assess the wall structure before booking and advise on any backing plate or reinforcement required.

Cable routing. Running cables from the TV position above a fireplace to the nearest power point and AV source typically requires routing through the wall cavity, sometimes across a significant distance. This is exactly the kind of job that separates professional installers from handymen.

Soundbar & AV Device Integration

A TV mounted without its associated devices properly set up is a half-finished job. Sydney Cabling handles:

• Soundbar wall mounting (dedicated bracket or shelf installation)
• HDMI, optical and digital audio cable runs
• Streaming device connection (Apple TV, Chromecast, Amazon Fire Stick)
• Gaming console setup and cable management
• AV receiver integration for full home theatre systems

If your setup also includes whole-home Wi-Fi and you’re experiencing dead zones in the TV room, ask about our Wi-Fi extender installation service, often done at the same visit.

Commercial TV Wall Mounting in Sydney

Sydney Cabling also handles commercial TV installations for:

• Offices and boardrooms (display screens, video conferencing setups)
• Hospitality venues (bars, restaurants, hotels)
• Retail digital signage
• Real estate agency and medical practice waiting rooms
• Education and training facilities

Commercial jobs often involve multiple screens, ceiling mounts, cable tray routing through ceiling spaces and integration with existing AV infrastructure. Our commercial team has worked in environments ranging from small city offices to large hospitality venues across Sydney. Learn more about commercial TV antenna installation and entertainment setup services.

Suburbs We Service

Sydney Cabling operates across Greater Sydney. Our technicians are based across the metro area, which means realistic same-day and next-day availability in most locations, not “we’ll be there between 8am and 6pm.”

We regularly service:

North Shore & Northern Beaches: Chatswood, Mosman, Manly, Dee Why, Narrabeen, Brookvale, Frenchs Forest, St Ives, Gordon, Pymble, Wahroonga

Eastern Suburbs: Bondi, Coogee, Rose Bay, Double Bay, Vaucluse, Surry Hills, Newtown

Inner West: Marrickville, Ashfield, Five Dock, Earlwood, Erskineville

Hills District & North-West: Castle Hill, Baulkham Hills, Kellyville, Norwest, Pennant Hills, Cherrybrook

Western Sydney: Blacktown, Marsden Park, Quakers Hill

South & South-West: Cronulla, Sutherland Shire, Fairfield

Can’t see your suburb? Contact us, we cover all of Greater Sydney and the Central Coast.

About Sydney Cabling

Sydney Cabling has been providing antenna, cabling and TV installation services across Sydney for over a decade. We hold a valid NSW contractor licence (verify our licence here) and carry full public liability insurance. Every technician is a trained professional, not a subcontracted gig-economy worker.

Our reviews speak for themselves, consistent 5-star ratings across Google, and a client base built almost entirely on referrals and repeat bookings. We’re not the cheapest option in Sydney. We’re the option that gets it right the first time, which ends up costing less.

Read more about why Sydney locals choose us →

Ready to Book? Get a Free Quote Today

Tell us your TV size, wall type and suburb and we’ll give you a clear, fixed price, no call-out fee just to quote, no vague “from $X” pricing.
